Enclosed design to enable it to be mounted on wall shelf easily.
Android-based, support installing and running 3rd party APK via SD card or USB.
No WiFi and internet.
With no delay switch from one video to another video.
Touch is optional.
Meet CE, FCC and ROHS quality standards.
IPS screen: 1280*800.

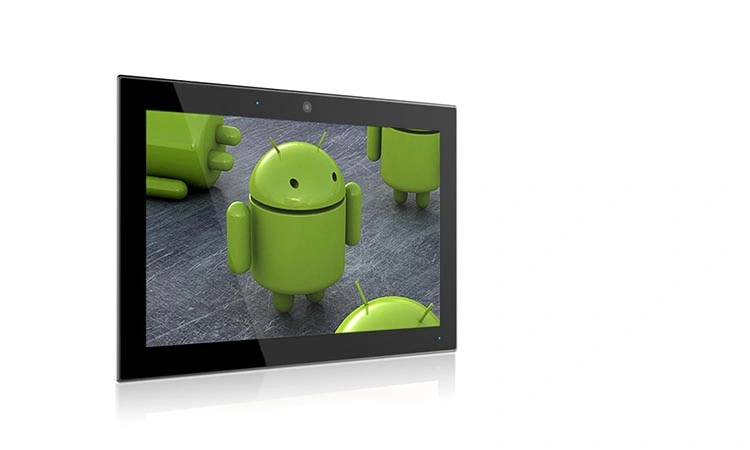

10.1 interactive tablet for commercial use.
Enclosed design with VESA standard to make it easier to be mounted on wall shelf.

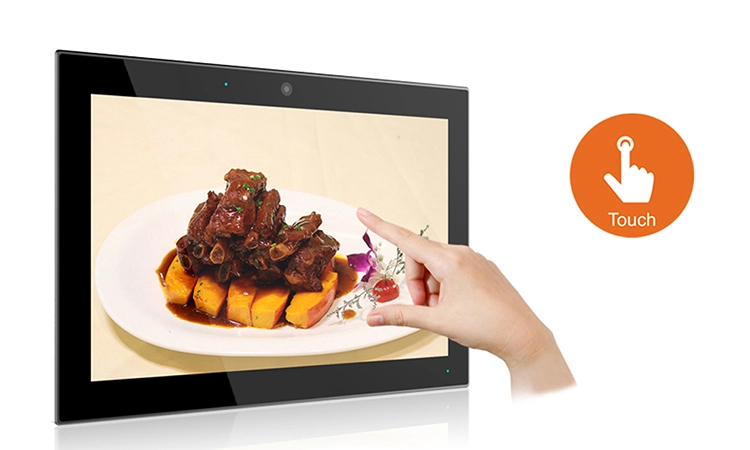

10-point capacitive touch panel.
Support camera, touch etc.
Integrated Android rooted solution, support 3rd party APK, to install via USB/SD card. This will be convenient if customers need do some modification on system.
The default installation of K-smart ensures the screen can be more interactive.
Video / picture advertisements can be played on a circular basis, multiple videos / pictures can be played at the same time.
This Android tablet LCD display is simple to use, can insert U disk / SD card automatically copy video to memory playback files.
8G interal memory, no need for extra SD card.

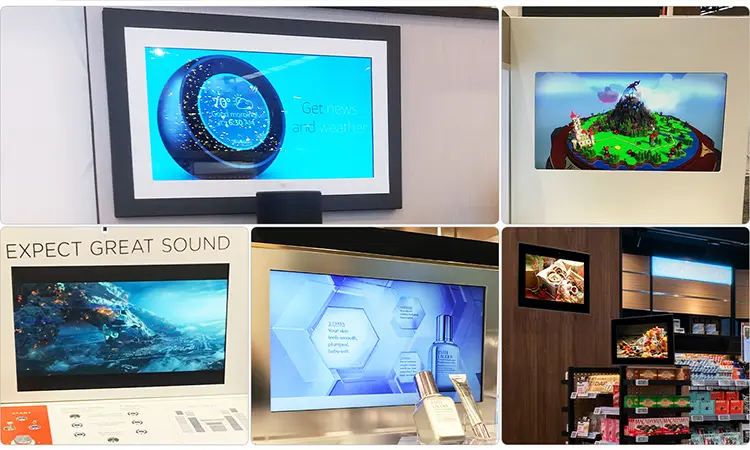

Kerchan commercial Android tablets can be widely used in various place such as retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital etc.
| Model | SAD1010SD | Shell color | Standard: black |
| Open Frame or Enclosed | Enclosed | LCD Panel | 10.1inch |
| Resolution | 1280*800 | Display Ratio | 16:10 |
| Brightness | 220cd/m2 | Contrast | 500:1 |
| Colour | 16.7M | Visible Angle | 178/178 |
| Response Time | 5ms | Life Time(hrs) | >20000H |
| Visible Area | 216.96×135.6mm(H×V) | Outline dimension | 252.05*174.05*27.6mm |
| CPU | A64, Corte-A53,1.5GHz | GPU | Mali400 MP2 |
| Memory | DDR3 1GB | ROM NAND flash | 8GB |
| Decoded Resolution | Support 1080P | RTC Real-time Clock | Support |
| Switch Time Setting | Support | System Update | SD card update |
| OS | Android 6.0 | External Interface | DC IN/USB*2/HDMI OUT/SD/Earphone |
| Touch Panel | 10 Point Capacitive Touch | Camera | / |
| Ethernet Support | / | Speaker | Size: 22MM*74MM, speakers 8R 2W*2 |
| External Port | Support SD/U flash disk | Input | AC 100-240V |
| Output | DC 12V/2A | Power consumption(Watt) | ≤12W |
| Standby(Watt) | ≤1W | Material | ABS material injection process |
| Installation | 75*75mm VESA Wall Mount | Image Format | JPEG/BMP/GIF/PNG |
| Audio Format | MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment) | Video Format | MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC... |
| Control Method | Remote control/Mouse | Default Language | English |
| Menu Language | Support Chinese, English | Storage Temperature | -20℃~60℃ |
| Working Temperature | -20℃~55℃ | Storage Humidity | 10%-75% |
| Working Humidity | 20%-80%RH | Product Weight(N.W. ) | 1.2kg |
| Plug Types | US, EU, AU, UK Optional | Package Size | A single package: 492*76*279mm Bulk packages: 784*516*250mm |
| Packaging | 16pcs/Package Package Weight: 25kg (Reference Only) | Accessories | User Guide, Instruction Book, Warranty, Desiccant |
| Optional | / | Notes | / |
