Horizontal or vertical installation.
Built-in rooted Android or HDMI input.
Boot or shutdown per designed schedule.
Support split screen, and multimedia display.
Touch screen is optional.
With CE FCC ROHS certification.
Open frame design which easy for integrated into POP displays.
Bar space, which makes advertising scenes flexible and rich, provides broad creative space for products, and is outstanding in advertising machines.
Horizontal or vertical installation.
Full view angle. Present a super-clear picture.
Support full screen diplay and split screen display.
Touch screen is optional.
Auto copy videos & pictures, auto-save after power-off.
Built in rooted Android or output.
Install K-smart APK by default. APK can interact with machine, switch on and off automatically, play multiple videos at the same time, change boot logo and other functions.
Unique sizes can be customized.
Kerchan Stretched Bar LCD Screens refers to a strip bar LCD display with a larger aspect ratio than ordinary displays. Because of its diverse sizes, clear displays, and rich functions, it is used in retail, transportation, banking, enterprises, and other industries, especially in the retail industry.
| Model | SAD1901KL | Shell color | Standard: Black |
| Open Frame or Enclosed | Open Frame | LCD Panel | 19inch |
| Resolution | 1920*360 | Display Ratio | / |
| Brightness | 300cd/m2 | Contrast | 2000:1 |
| Colour | 16.7M | Visible Angle | 178/178 |
| Response Time | 5ms | Life Time(hrs) | 20000H |
| Visible Area | 476.64*89.37mm(H×V) | Outline dimension | 537.5*113.4*29mm |
| CPU | A64, Corte-A53,1.5GHz | GPU | Mali400 MP2 |
| Memory | DDR3 1GB | ROM NAND flash | 8GB |
| Decoded Resolution | Support 1080P | RTC Real-time Clock | Support |
| Switch Time Setting | Support | System Update | SD card update |

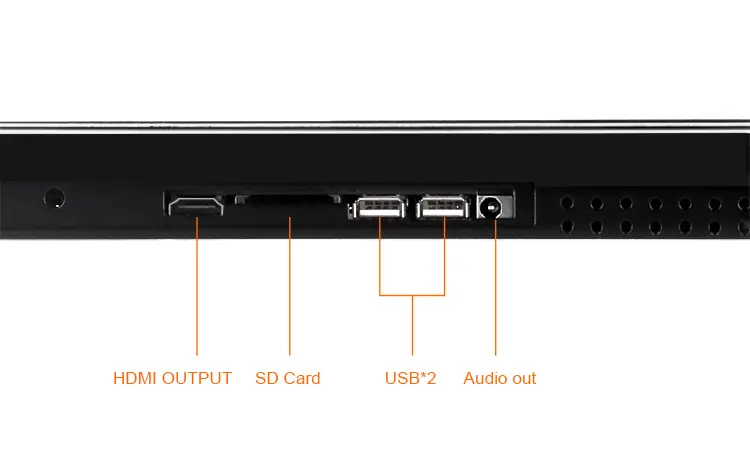

| OS | Android 6.0 | External Interface | USB*2//SD card/HDMI OUT/DC 12V |
| Touch Panel | Not Support | Camera | / |
| Ethernet Support | Not Support | Speaker | / |
| External Port | Support SD/U flash disk | Input | AC 100-240V |
| Output | DC 12V/2A | Power consumption(Watt) | ≤12W |
| Standby(Watt) | ≤1W | Material | SPCC material injection process |
| Installation | 100*200VESA wall mount | Image Format | JPEG/BMP/GIF/PNG |
| Audio Format | MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment) | Video Format | MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC... |
| Control Method | Remote control/Mouse | Default Language | English |
| Menu Language | Support Chinese, English | Storage Temperature | -20℃~60℃ |
| Working Temperature | -20℃~55℃ | Storage Humidity | 10%-75% |
| Working Humidity | 20%-80%RH | Product Weight(N.W. ) | 2.35KG |
| Plug Types | US, EU, AU, UK Optional | Package Size | A single package: 569*88*246mm Bulk packages: 567*338*474mm |
| Packaging | 10 units/box Box Weight: 20kg (Only for reference) | Accessories | User Guide, Instruction Book, Warranty, Desiccant |
| Optional | / | Notes | / |
