Support HDMI input.
Boot or shutdown per designed schedule.
Individual display or connect & synchronize mode.
With CE FCC ROHS certification.

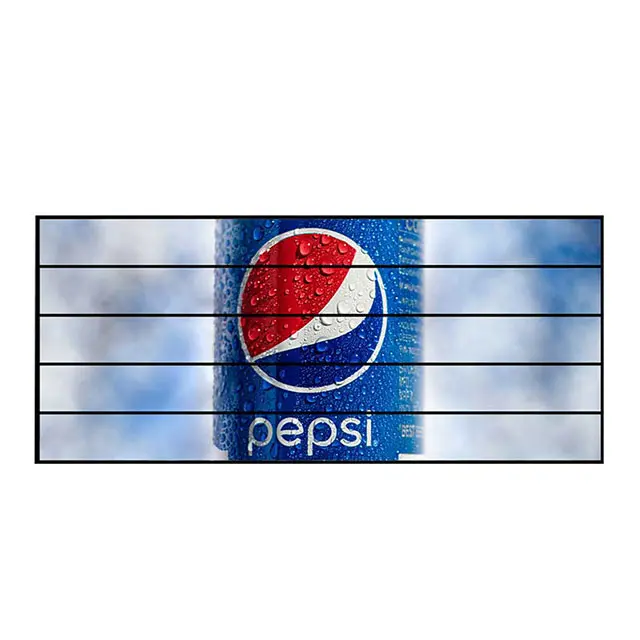

Connect Mode.

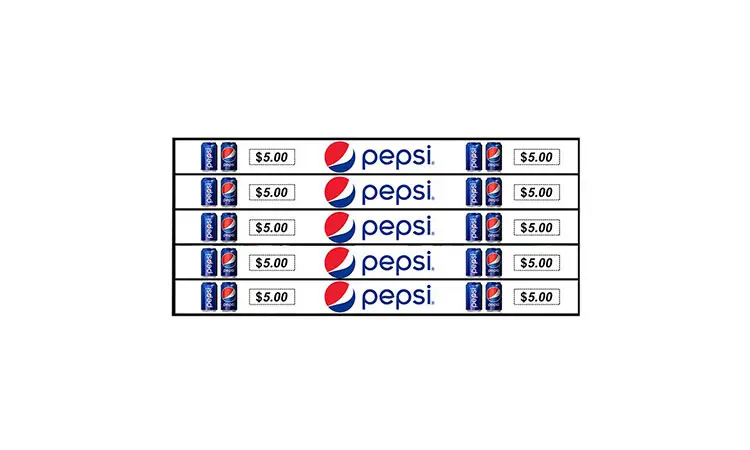

Synchronize Mode.

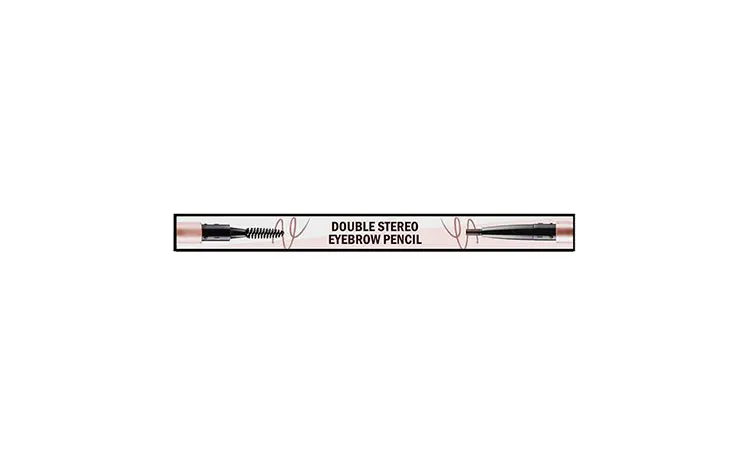

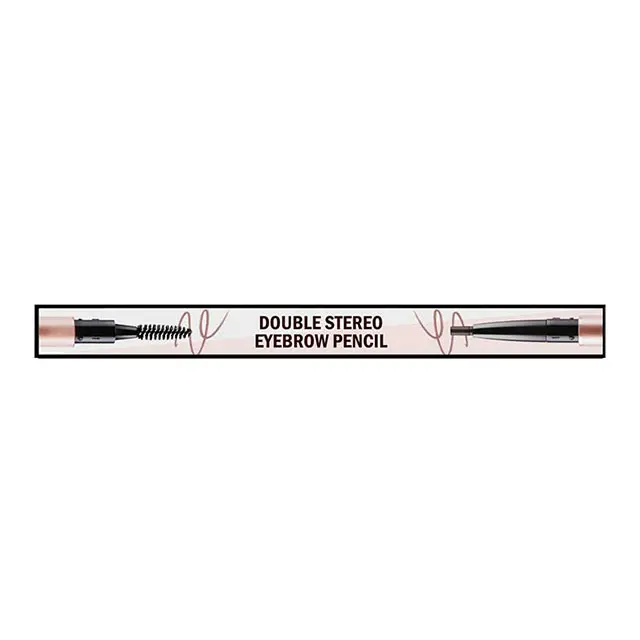

Individual Display.

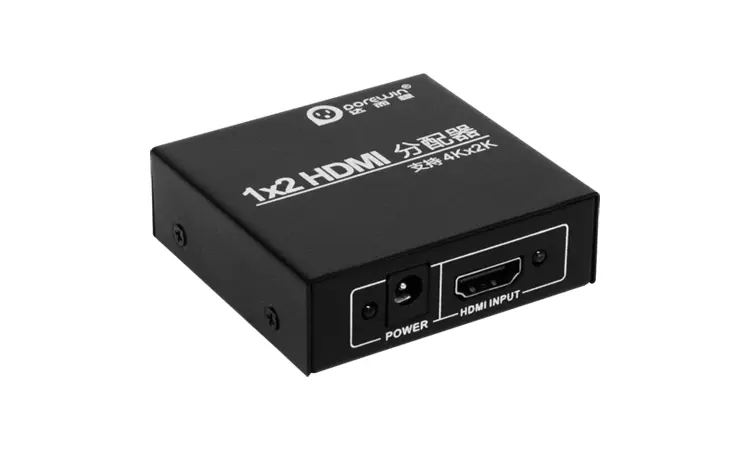

Features of part A: Slicing LCD processor.
Support 4way HDMI signal output. Support customized 1*2, 1*3, 1*4, 1*5, 1*6, 2*2, 2*3, 3*2 according to user needs.
Support 1 channel HDMI and 1 USB total 2 signal input, and the input video signal can be synchronized with video output and realize splicing display.
Support for each display unit to a 180 degree mirror flip.

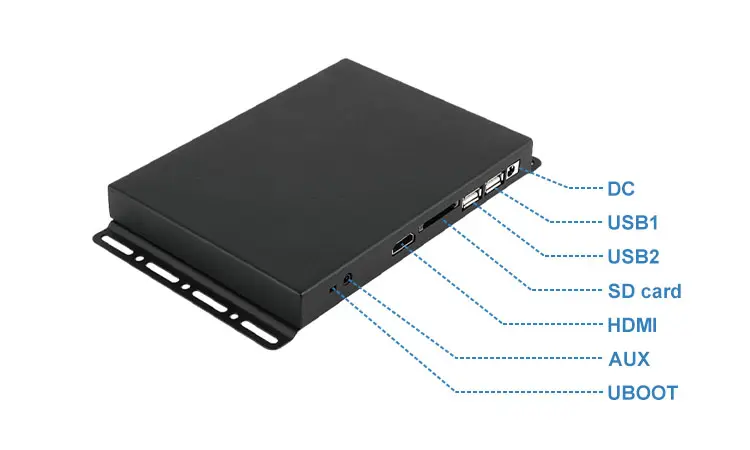

Feature of part B: 4k media player.
Support auto power on/power off at pre-set time.
Android based, compatible with 3rd party.
Most powerful video engine, capable of multiple videos decoding.
Optional software: remotely control media playing. Remotely content management(CMS), support sending contents from office to tablets.

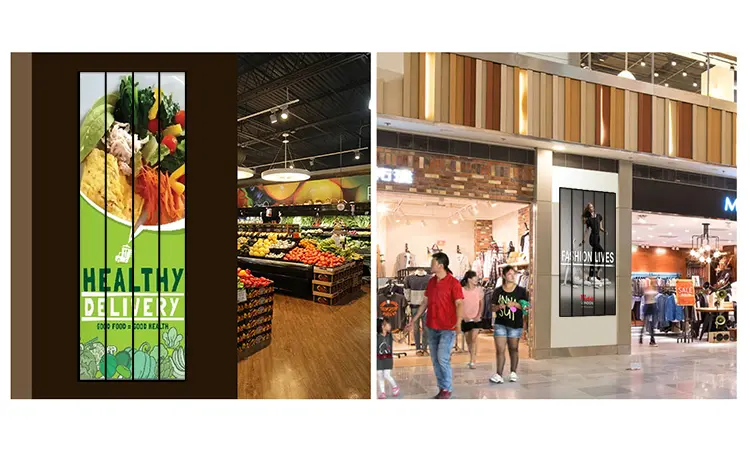

Kerchan Android interactive advertising monitors are widely used in retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital and any commercial environment. All kinds of public area for advertising display.
| Model | SAD2310HL | Shell color | Standard: Black |
| Open Frame or Enclosed | Enclosed | LCD Panel | 23.1inch |
| Resolution | 1920*158 | Display Ratio | / |
| Brightness | 300cd/m2 | Contrast | 500:1 |
| Colour | 16.7M | Visible Angle | 178/178 |
| Response Time | 5ms | Life Time(hrs) | 20000H |
| Visible Area | 585.6*48.19mm | Outline dimension | 597.4*60.4*15.8mm |
| CPU | TSUMV59XU | GPU | / |
| Memory | / | ROM NAND flash | / |
| Decoded Resolution | Support 1080P | RTC Real-time Clock | Support |
| Switch Time Setting | Support | System Update | TF card update |

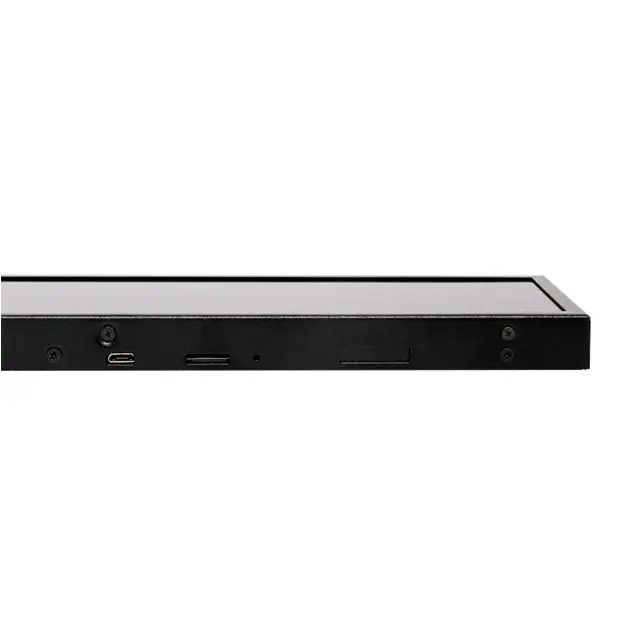

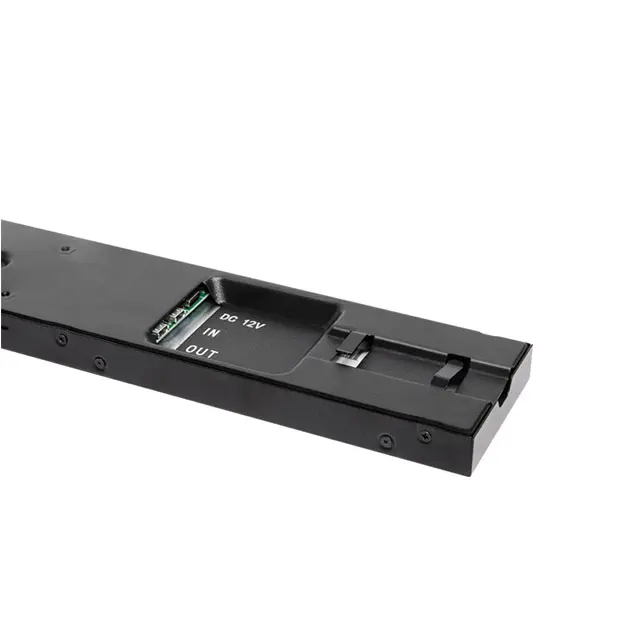

| OS | Mstar TV Nos | External Interface | TF card/Type-C 12V |
| Touch Panel | / | Camera | / |
| Ethernet Support | / | Speaker | / |
| External Port | Support SD/U flash disk | Input | AC 100-240V |
| Output | DC 12V/2A | Power consumption(Watt) | ≤15W |
| Standby(Watt) | ≤1W | Material | SPCC material injection process |
| Installation | Fixed Board | Image Format | JPEG/BMP/GIF/PNG |
| Audio Format | MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment) | Video Format | MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC... |
| Control Method | Mouse | Default Language | English |
| Menu Language | Support Chinese, English | Storage Temperature | 0℃~40℃ |
| Working Temperature | -20℃~60℃ | Storage Humidity | 10%-75% |
| Working Humidity | 20%-80%RH | Product Weight(N.W. ) | 2.03kg |
| Plug Types | US, EU, AU, UK Optional | Package Size | A single package: 662*73*185mm Bulk packages: 667*343*376mm |
| Packaging | 1 units/box Box Weight: 2.2kg (Only for reference) | Accessories | User Guide, Instruction Book, Warranty, Desiccant |
| Optional | / | Notes | / |
