1. Built in rooted Android.
2. 8GB interal memory.
3. No WiFi or Internet.
4. Touch is optional, 10 Point Capacitive Touch.
5. Build with HDMI output.
6. With CE FCC ROHS certification.

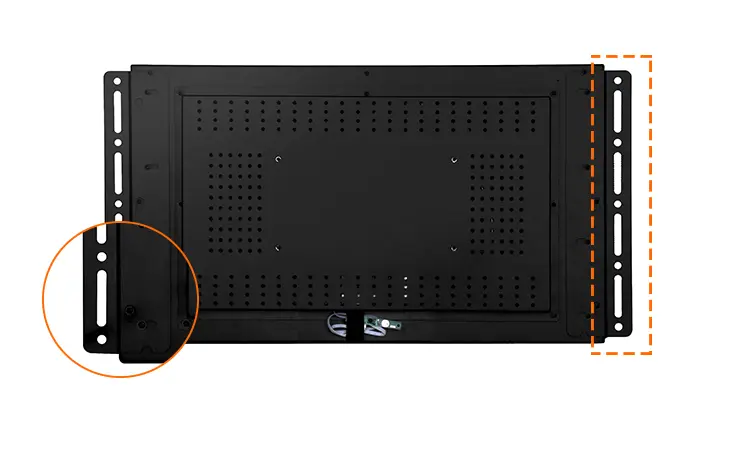

Open frame design with''ears''on two sides which makes it more easy to integrate into POP displays.
Support 1080P video, powerful video engine, capable of multiple videos decoding.
Support all devices with HDMI output.

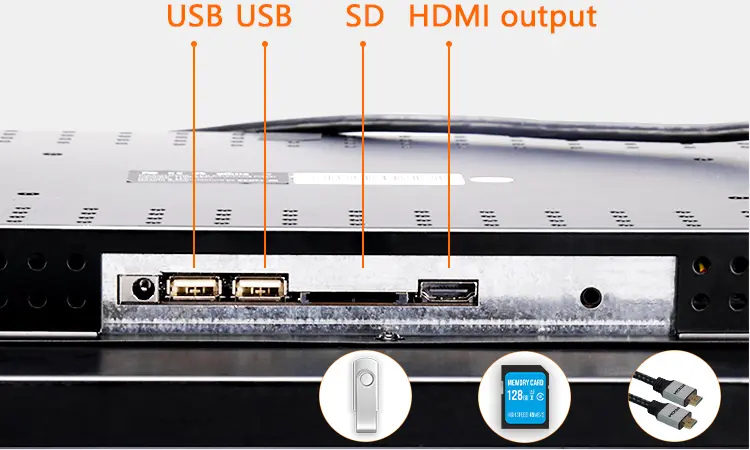

Interface：USB*2/SD card.

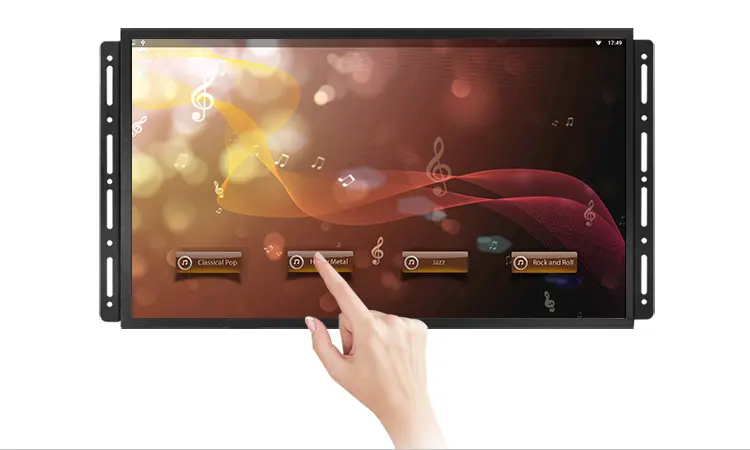

Touch is optional, 10 Point Capacitive Touch.
No WiFi or Internet.
8GB internal memory, no need for extra SD card.
Auto run videos after power on.
Android based, support 3rd party APK to install via USB/SD card.

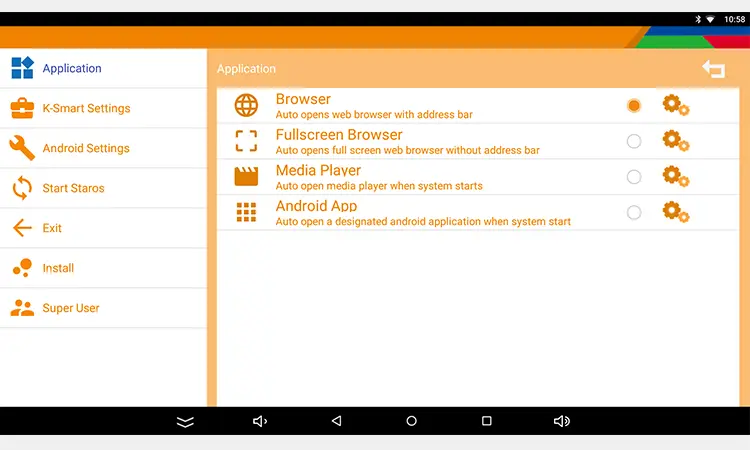

K-smart is installed by default, to make the screen be more interactive. The APK can interact with the machine, automatically switch the machine, change the boot logo and other functions.

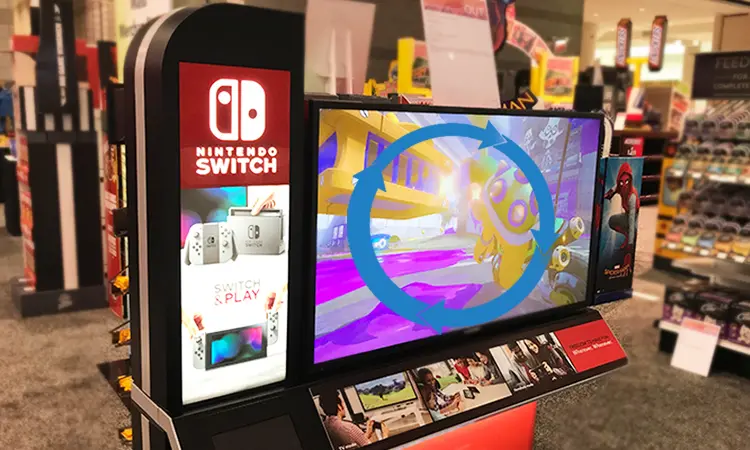

Kerchan Android interactive advertising monitors are widely used in retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital and any commercial environment. All kinds of public area for advertising display.
| Model | SAD3201KD | Shell color | Standard: black |
| Open Frame or Enclosed | Open Frame | LCD Panel | 32.1inch |
| Resolution | 1920*1080 | Display Ratio | 16:9 |
| Brightness | 400cd/m2 | Contrast | 1200:1 |
| Colour | 16.7M | Visible Angle | 178/178 |
| Response Time | 5ms | Life Time(hrs) | 20000H |
| Visible Area | 698.48*392.85mm(H×V) | Outline dimension | 779.2*396.35*46.5mm |
| CPU | A64, Corte-A53,1.5GHz | GPU | Mali400 MP2 |
| Memory | DDR3 1GB | ROM NAND flash | 8GB |
| Decoded Resolution | Support 1080P | RTC Real-time Clock | Support |
| Switch Time Setting | Support | System Update | SD card update |
| OS | Android 6.0 | External Interface | DC IN/USB*2/HDMI OUT/SD/Earphone |
| Touch Panel | 10 Point Capacitive Touch | Camera | / |
| Ethernet Support | / | Speaker | Size: 22MM*74MM, speakers 8R 2W*2 |
| External Port | Support SD/U flash disk | Input | AC 100-240V |
| Output | DC 12V/4.5A | Power consumption(Watt) | ≤30W |
| Standby(Watt) | ≤1W | Material | SPCC material |
| Installation | 100*400mm VESA Wall Mount | Image Format | JPEG/BMP/GIF/PNG |
| Audio Format | MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment) | Video Format | MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP\MKV ETC... |
| Control Method | Remote control/Mouse | Default Language | English |
| Menu Language | Support Chinese, English | Storage Temperature | -20℃~60℃ |
| Working Temperature | -20℃~55℃ | Storage Humidity | 10%-75% |
| Working Humidity | 20%-80%RH | Product Weight(N.W. ) | 12kg |
| Plug Types | US, EU, AU, UK Optional | Package Size | A single package: 819*91*563mm |
| Packaging | 1pcs/Package Package Weight: 14kg (Reference Only) | Accessories | User Guide, Instruction Book, Warranty, Desiccant |
| Optional | 1. Motion Sensor 2. Push Button | Notes |
