Frameless Housing.
Screen definition: 1920*1080.
Support 1080P video solution.

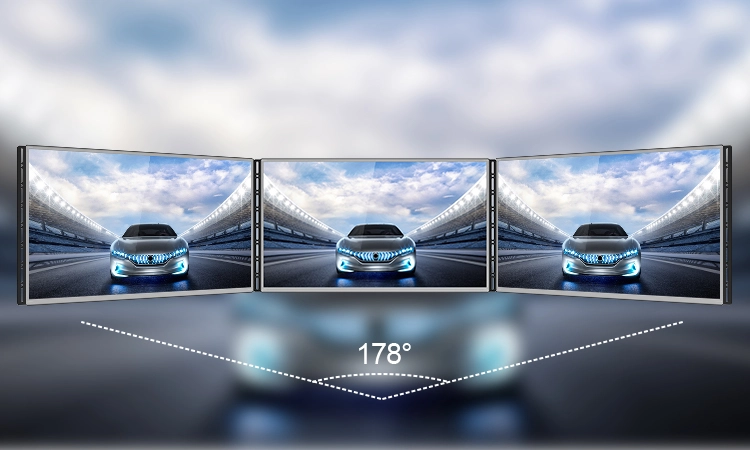

Full view angle.
Build with HDMI input.
With CE FCC ROHS certification.

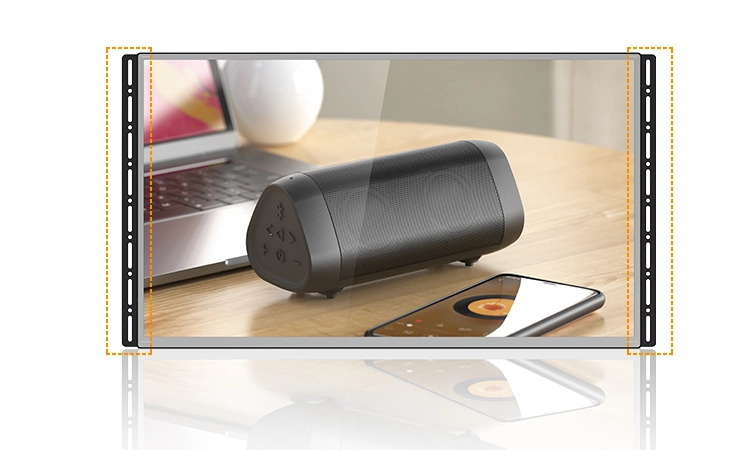

Open frame design with "ears" on two sides which makes it more easy to integrate into POP displays.

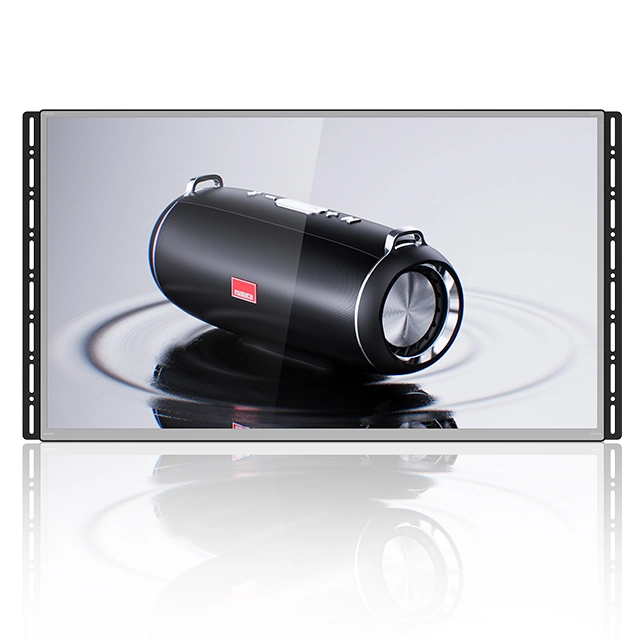

27 inch open frame HD LCD advertising video screen.
27 inch IPS full view angle panel.
Support 1920*1080 video display.
Optional function:
1.Motion sensor (auto power on / off with or without detecting moving body).
2.Push button (to press the button for playing the files in designated).
Build with HDMI input.
SD & USB interface for content management.
Auto Loop videos from SD card or USB after power on.
Auto copy contents from USB to SD card to update contents.
Auto power on / power off at a scheduled time.

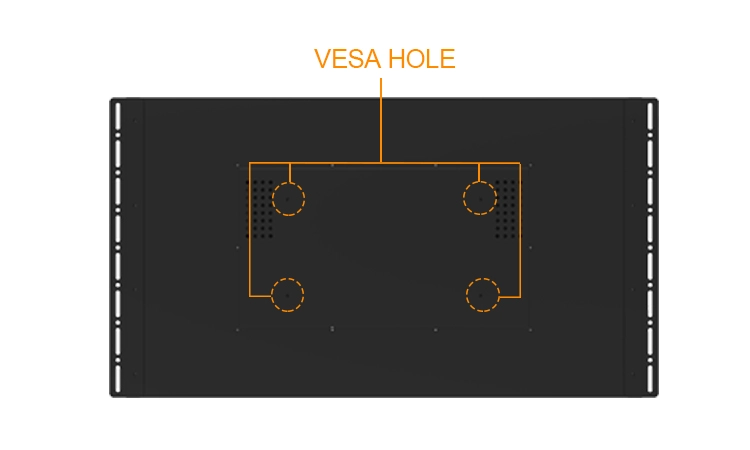

Support mounted through the holes on both sides or VESA wall mount.

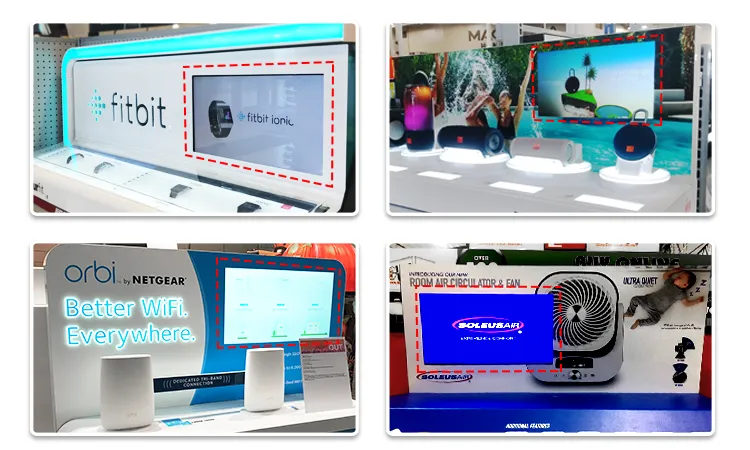

Kerchan 27" Open Frame HD Video Screens are widely used in retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital and any commercial environment.
Model | SAD2701KH | Shell color | Standard: black |
Open Frame or Enclosed | Open Frame | External Port | Support SD/U flash disk |
LCD Panel | 27 inch | Input | AC 100-240V |
Resolution | 1920*1080 | Output | DC 12V/2A |
Display Ratio | 16:9 | Power consumption (Watt) | ≤30W |
Brightness | 300cd/m2 | Standby (Watt) | ≤1W |
Contrast | 3000:1 | Material | SPCC material injection process |
Colour | 16.7M | Installation | 200*100mm VESA Wall Mount |
Visible Angle | 178/178 | Image Format | JPEG/BMP/GIF/PNG |
Response Time | 8ms | Life Time(hrs) | >50000 H |
Audio Format | MP3/ WMA/WAV | Video Format | MPEG1/MPEG2/MP4, AV/MOV/3GP/RMVP/MKV |
Visible Area | 597.89(H)×336.31(V) mm | Control Method | Remote control |
Outline dimension | 652.5*358.8*35mm | Default Language | English |
CPU | TSUMV59XU | Menu Language | Support Chinese, English |
Storage Temperature | 0℃~40℃ | Working Temperature | -20℃~60℃ |
Working Humidity | 20%-80%RH | Storage Humidity | 10%-75% |
Decoded Resolution | Support 1080P | RTC Real-time Clock | Support |
Product Weight (N.W.) | 12kg | Switch Time Setting | Support |
System Update | U flash disk update | Plug Types | US, EU, AU, UK Optional |
Package Size | A single package: 696*81*495mm | Packaging | 1pcs/Package Package Weight: 12kg (Reference Only) |

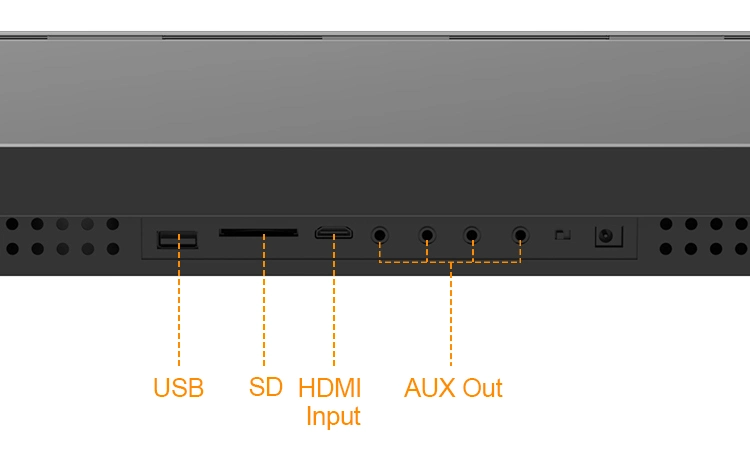

External Interface | DCIN/DC-SW/Earphone*4/HDMI in/SD/USB | Accessories | User Guide, Instruction Book, Warranty, Desiccant |
Speaker | Size: 22*74MM ; speakers 8R 2W*2 | Optional | 1. Motion Sensor |
